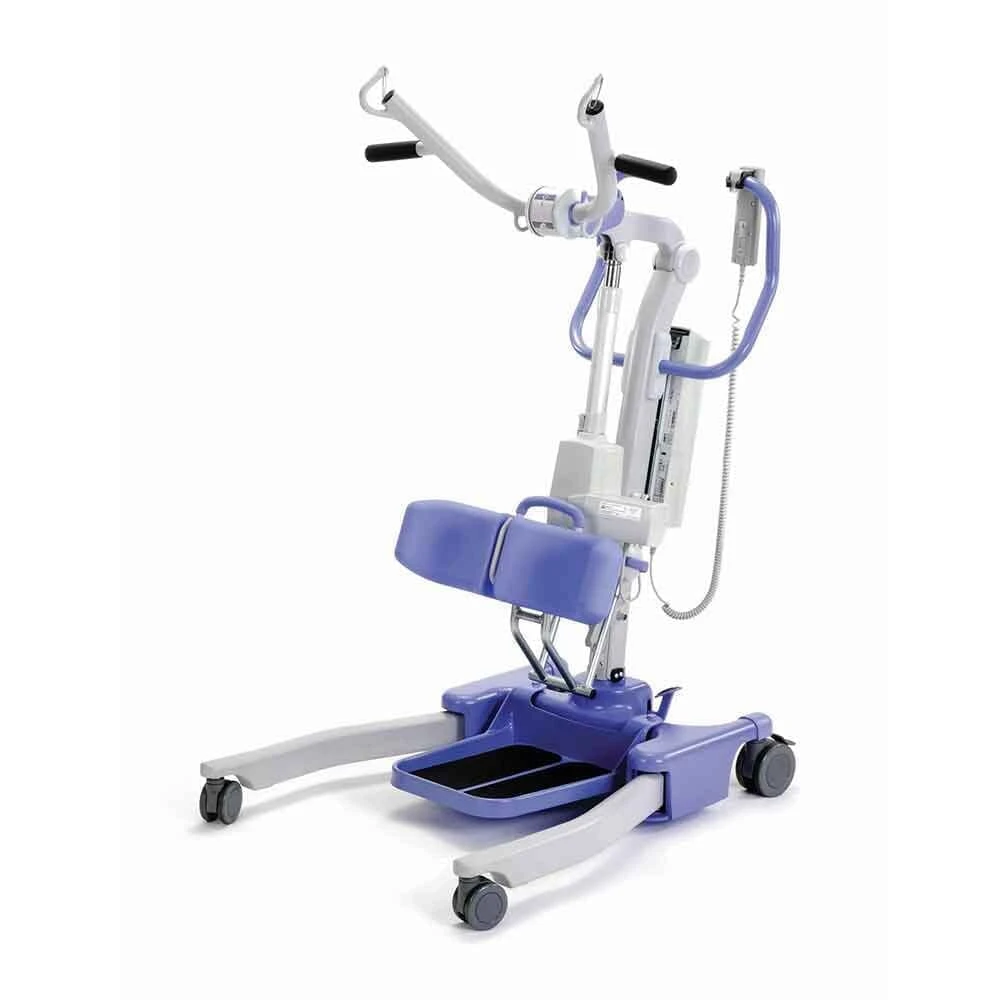

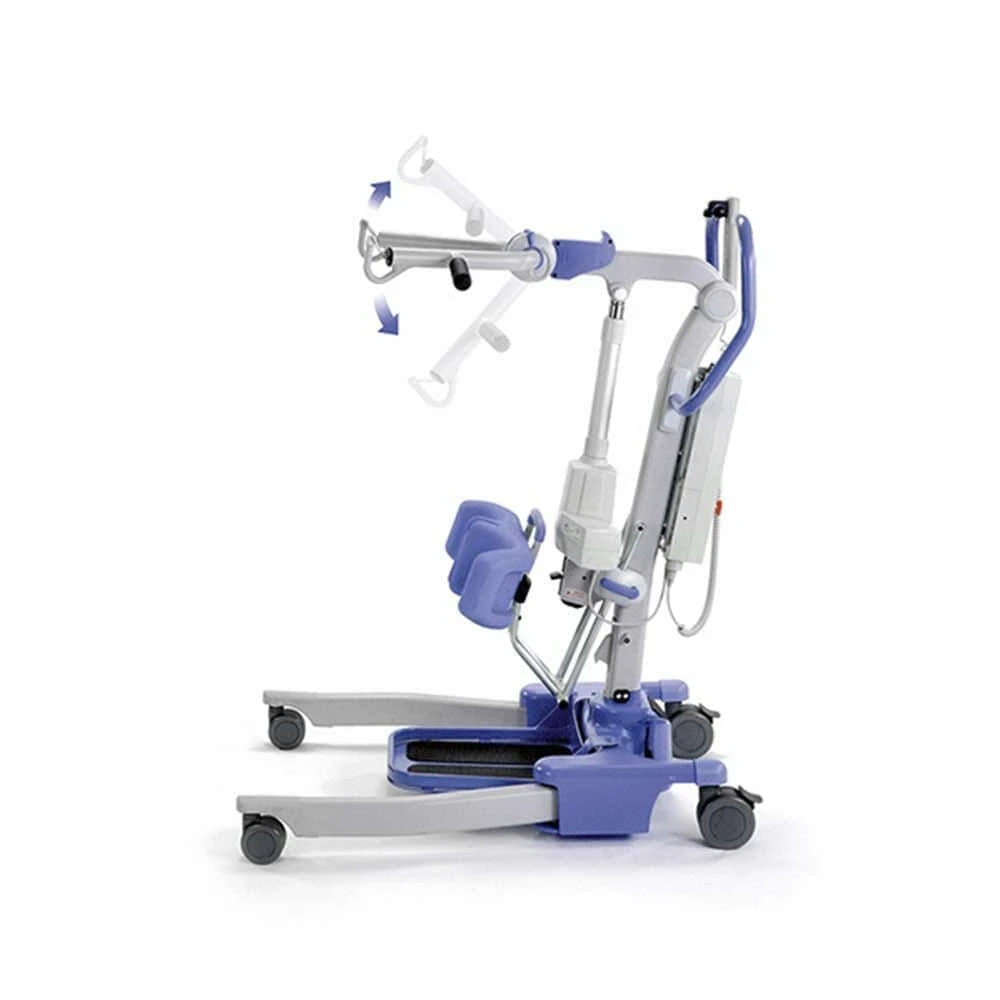

Oxford Journey Stand Aid

Product Details

Full Product Weight with Battery: 40.2 kgs (88.6lbs)

5 year manufacturer’s warranty

Maximum Overall Length: 1000mm (39.4″)

Minimum Overall Length: 935mm (36.8″)

Maximum Overall Height: 1600mm (63″)

Minimum Overall Height: 1130mm (44.5″)

Height (Folded): 525mm (20.5″)

Depth (Folded): 1040mm (41″)

Widest Point (Between support handles): 680mm (26.8″)

Maximum Height to Attachment Point: 1530mm (60.2″)

Minimum Height to Attachment Point: 720mm (28.4″)

Turning Radius: 1145mm (45.1″)

Legs Open – External Width: 970mm (38.2″)

Legs Open – Internal Width: 875mm (34.5″)

Legs Closed – External Width: 685mm (27″)

Legs Closed – Internal Width: 590mm (22.2″)

Overall Height of Legs: 110mm (4.3″)

Ground Clearance: 30mm (1.2″)

Front Twin Castors: 75mm (3″)

Rear Braked Castors: 100mm (4″)

Safe Working Load: 155 kgs (341lbs)
