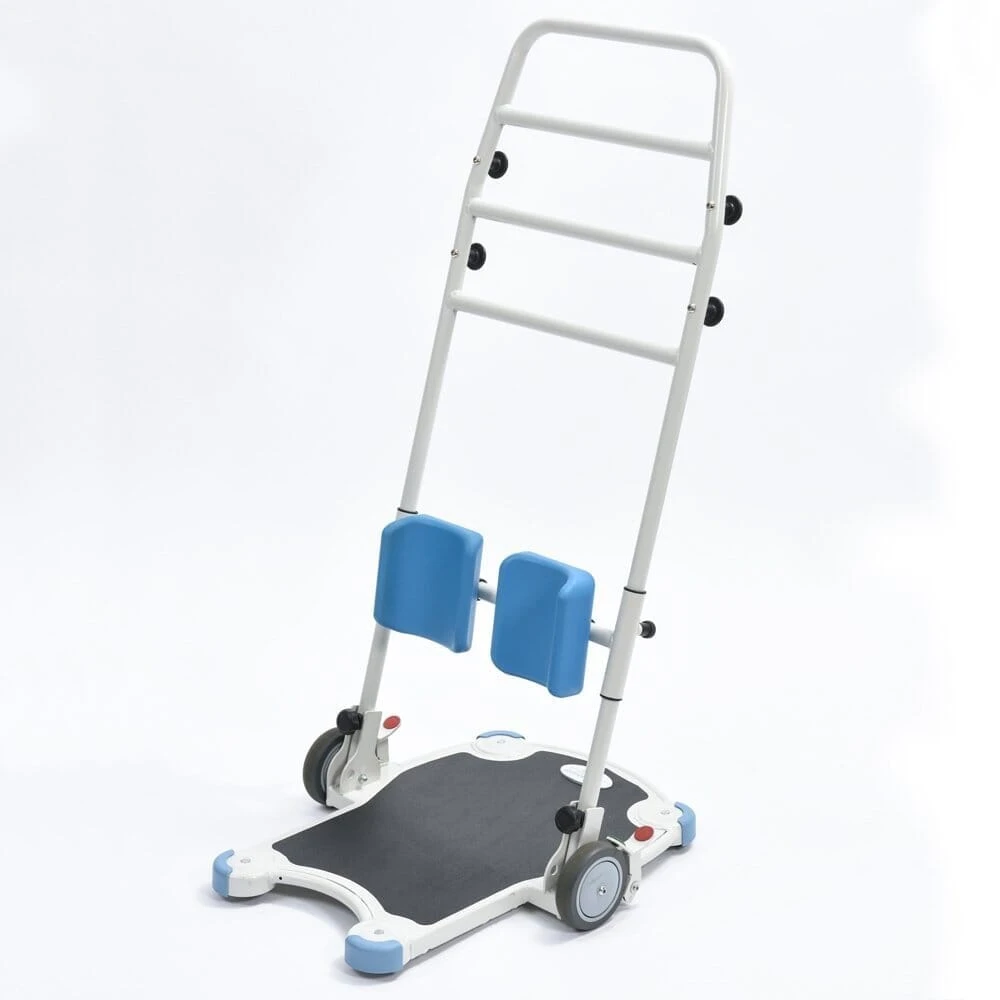

Atlas Advance Turning & Transfer Aid

Product Details

Aids in transferring people who need additional support when standing.

Specially designed for comfort, safety, and user-friendly experience for both caregiver and user.

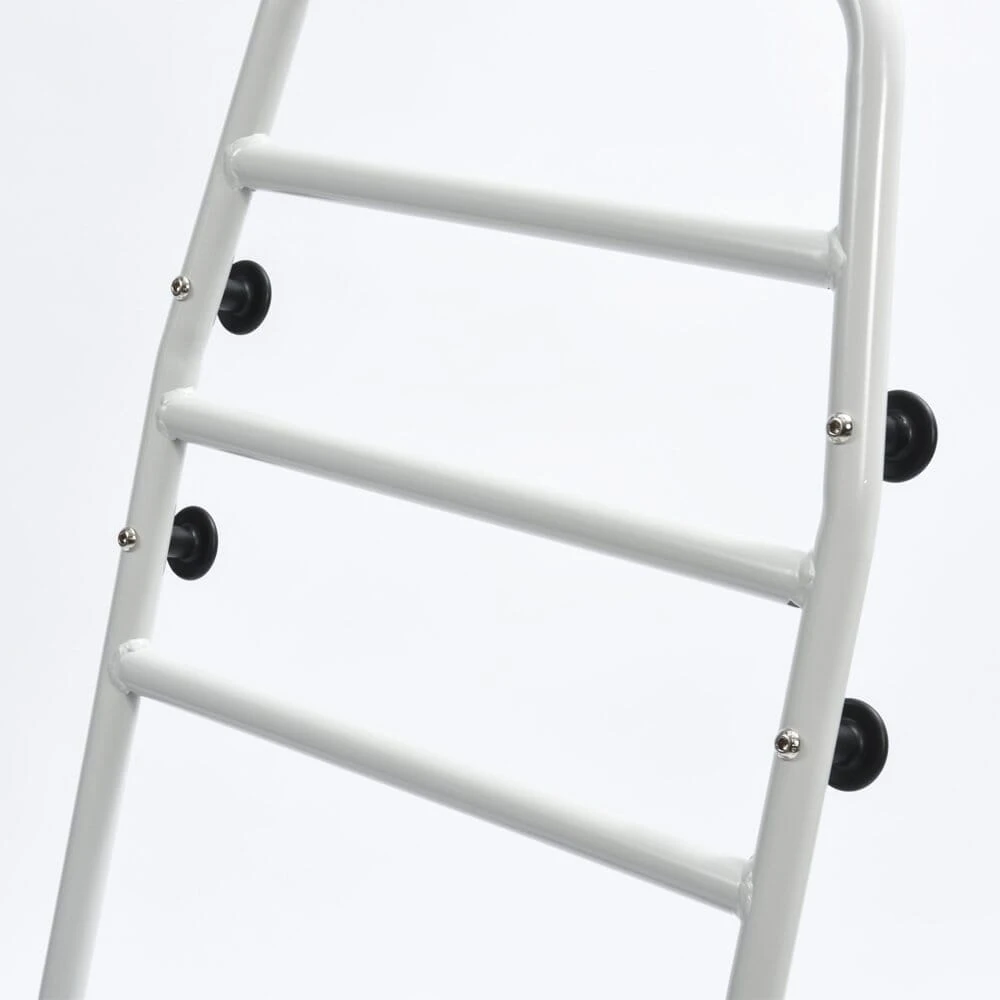

Uniquely designed four-bar handles make it suitable for the user at different heights.

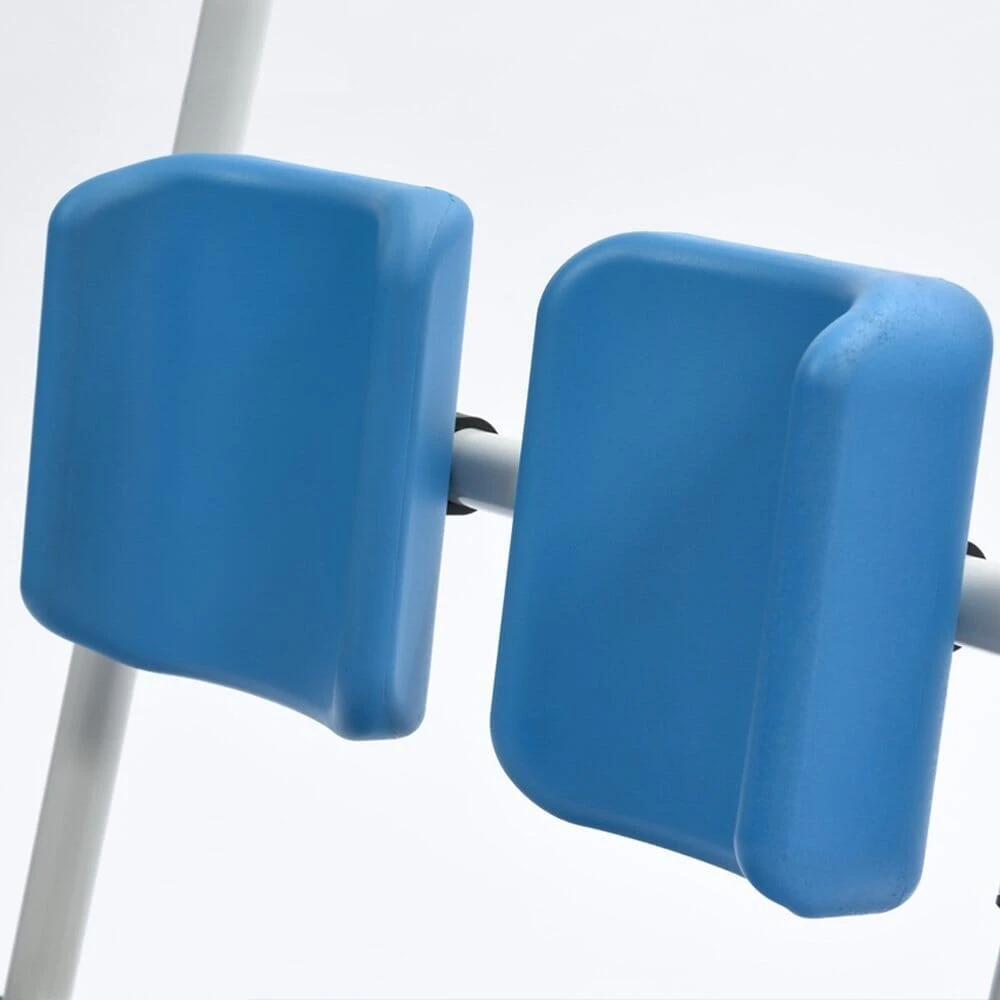

Adjustable padded dual knee pads for comfort.

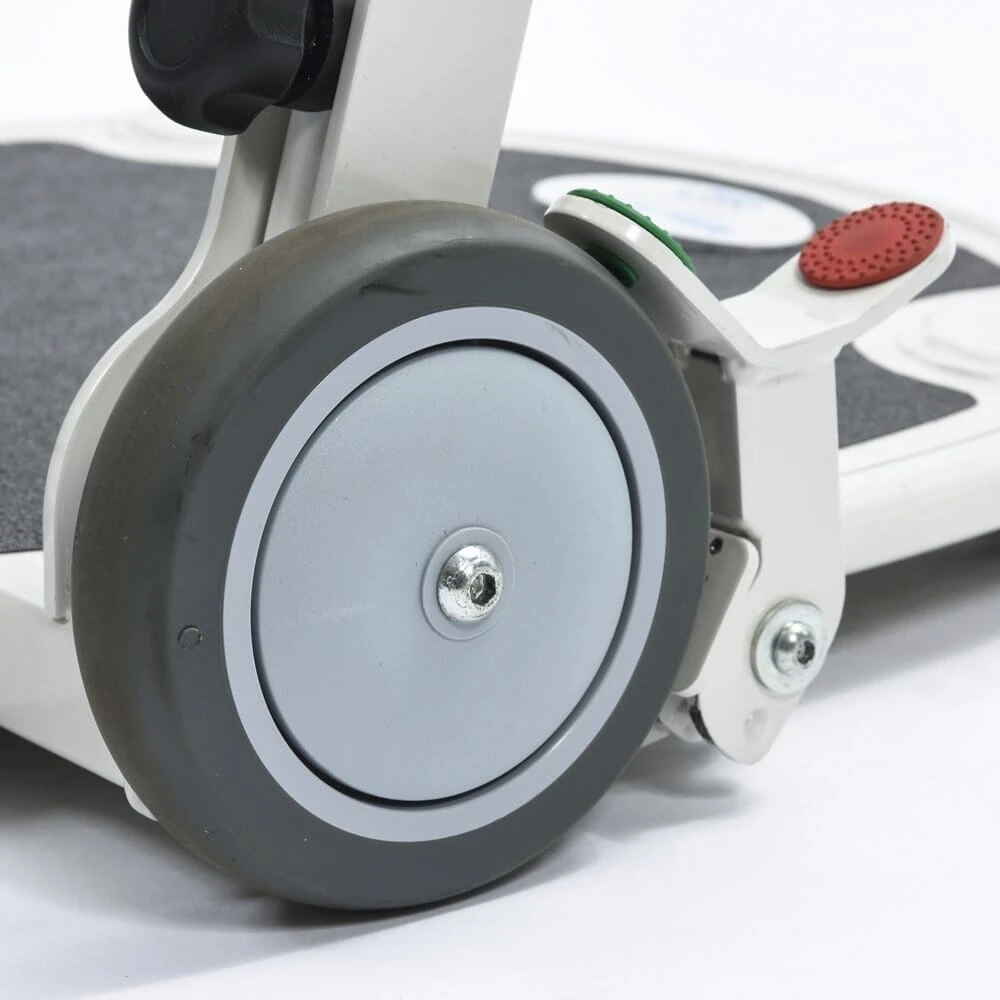

Two central wheels and 4 castors enable effortless transfers over the short distance.

The standing platform is enfolded with a non-slip mat.

Product weight: 18.36 kg

Maximum User Weight: 155 kg

Overall Width 579mm (22 ¾ inches)

Overall Length 683mm (26¾ inches)

Inside Width 374mm (14 ¾ inches)

Wheel Diameter 125mm (5 inches)

Knee Pad Height 356 – 472mm (14 – 18 ¾ inches).

Min. Gap Under Bed 52mm (2 inches)

Handle Width 480mm (18 ¾ inches)

Knee Pad Width 162-262mm (6½-10¼ inches).

Lower Bar Height 744mm (29 ¼ inches)

Second Bar Height 880mm (34 ¾ inches)

Third Bar Height 1015mm (40 inches)

Upper Bar Height 1150mm (45 ¼ inches)

Platform Height 48mm (1 ¾ inch)

Overall Width 579mm (22 ¾ inches)
